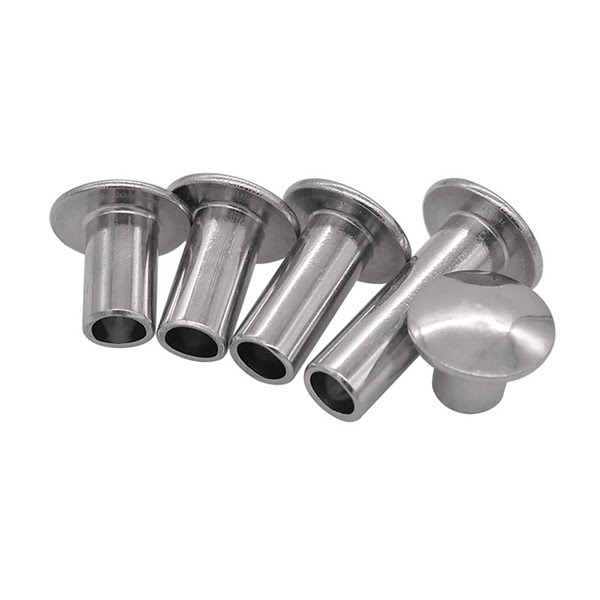

Semi Tubular Rivet

Semi-tubular rivets (also known as tubular rivets) are essentially the same as solid rivets, but with a shallow hole at the tip, opposite the head. This hole causes the tubular portion of the rivet (around the hole) to roll outward when force is applied.
Availability:

Semi-tubular rivets are often the preferred rivet style for joints where movement is required (pivot points), because the rivet material only swells at the tail. Common applications for tubular rivets include light fixtures, HVAC ducts, electronics, ladders, and brakes, among many others.


NameSemi-tubular rivets
DimensionM1.6-M160
MaterialsAluminum,Brass,Nickel-plated brass,Copper,Steel (plain finish),Zinc-plated steel,stainless steel
Lengths1/16” to 2-15/16”
Body Diameters1/16” to 3/8”; 0.085”/0.089” and 0.095”/0.099”
Head Diameters5/64” to 23/32”
Head StylesFlat, oval, pan, truss
SamplesSamples are free.
PackagePack the box first and put it in the carton, or according to customers' requirement.
PaymentT/T or L/C
